Gateway analogiques 16 /32 ports FXS

FXS VoIP analog Access Gateway

16 or 32 FXS ports RJ11, 4* LAN, 10/100Mbps RJ-45.

Description du produit

TSV1000-16S / 32S is a multifunctional analog gateway offering seamless connectivity between IPbased telephony networks and legacy telephones (POTS), and PBX systems. The device offers 16 / 32 FXS ports, which is ideally suited for small and medium businesses, call centers and multilocation environments that need VoIP services. TSV1000- 16S / 32S supports the standard SIP protocol and it‘s compatible with leading IMS/NGN platforms and SIPbased IP telephony systems.

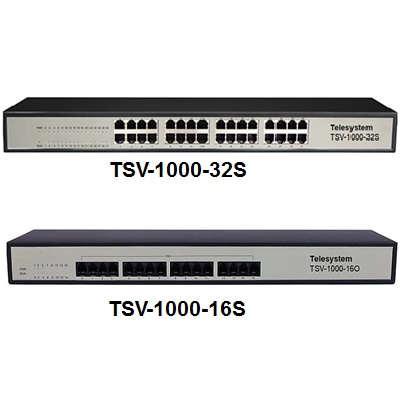

Models:

TSV1000-16S   16 ports FXS

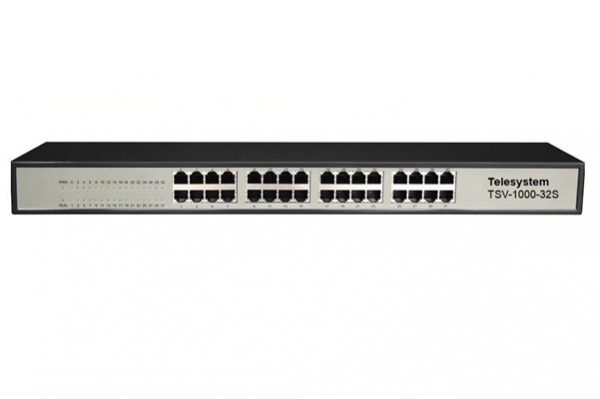

TSV1000-32S   32 ports FXS

KEY FEATURES :

  • Cost effective gateway with 16 / 32 FXS ports
  • Fax over IP (T.38 and Pass-Through)
  • Support IPv4 and IPv6
  • TR069 and SNMP
  • Elastix / Broadsoft Certification
  • Multiple codecs: G.711A/U,G.723.1,G.729A/B
  • Fully compatible with leading IMS/NGN, SIP based IP telephony system

NETWORK FEATURES :

  • Static/Dynamic I
  • PPPo
  • DHCP Clien
  • IPv4/IPv
  • TCP, UDP,TFTP, FTP, ARP,RARP ,Ping, NTP, SNTP, HTTP/HTTPS, DN
  • Ping / Tracer
  • DHCP Option 66,120,121

SOFTWARE FEATURES:

  • Port G
  • Web AC
  • Telnet AC
  • Action URL.
  • Routing Rules based Prefixes.
  • Caller/Called Number Manipulation

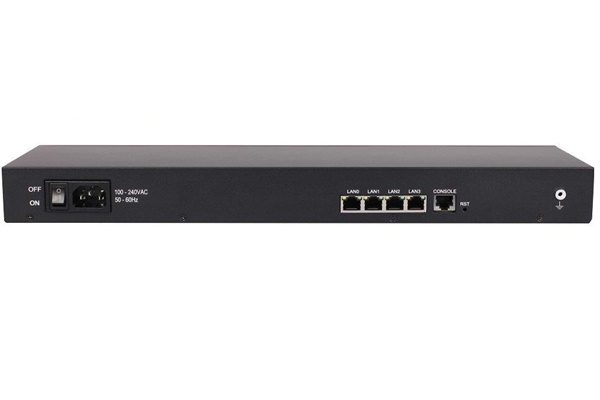

PHYSICAL INTERFACES:

  • Capacity: 16* FXS, RJ11 / 32* FXS, RJ1
  • Ethernet Interfaces: 4* LAN, 10/100Mbps, RJ-
  • Console:1*RS232,115200 b

VOICE & FAX :

  • G.711A/U law, G.723.1, G.729A/B.
  • Silence Suppression.
  • Comfort Noise Generation(CNG).
  • Voice Activity Detection(VAD).
  • Echo Cancellation(G.168), with up to128ms.
  • Adaptive (Dynamic) Jitter Buffer.
  •  G.711A/U law, G.723.1,
  • G.729A/B,G.726, AMR,iLBC
  •  Silence Suppression
  •  Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168), with up to 128ms
  • Adaptive (Dynamic) Jitter Buffer
  •  Hook Flash
  • Programmable Gain Control
  •  T.38/Pass-through
  •  Modem/POS
  •  DTMF mode:
  • Signal/RFC2833/INBAND
  •  VLAN 802.1P/802.1Q
  •  Layer3 QoS and DiffServ

FXS PORT:

  • Connector: RJ11 and 2xRJ21
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  •  Caller ID: DTMF/FSK CLI Presentation
  • Max Cable Length: 3km
  • Reversed Polarity
  • Programmable Call Progress Tone
  •  Internal Call

VOIP:

  • Protocol: SIP v2.0 (UDP/TCP),RFC3261  SDP,RTP(RFC2833), FC3262, 3263,3264,3265,3515,2976,3311
  • RTP/RTCP, RFC2198, 1889
    • RFC4028 Session Timer
    • RFC3266 IPv6 in SDP
    • RFC2806 TEL URI
    • RFC3581 NAT,rport
    • Primary/Backup SIP Server
    • Outbound Proxy
    • DNS SRV/ A Query/NATPR Query
    • SIP Trunk
    • Early Media/Early Answer
    • NAT:STUN, Static/Dynamic NAT
  • SNMP v1/v2/v3.
  • Auto Provisioning.
  • Web/Telnet.
  • Configuration Backup/Restore.
  • Firmware Upgrade via Web.
  • Network Capture.
  • NTP/Daylight Saving Time.
  • IVR local Maintenance.
  • Cloud-based Management
  • Power Supply:100-240V,50-60Hz
  • Power Consumption:30W(Typical Power Consumption: 6W(long line 8W)
  • Temperature (Operation): 0 ℃ ~ 45 ℃ (Storage): -20 ℃ ~80 ℃
  • Humidity: 10%-90% No condensation
  • Dimensions (W/D/H): 440*230*44
  • Unit Weight: 7kg.
  • Compliance: CE, FC
