Passerelle VOIP analogique 4FXS ref: TSV-1000-4S

TSV-1000-4S Multi-functional analog telephone, support SIP/IMS/3GPP. with;

  • Telephone Interface:      4* FXS, RJ11
  • Network Interface:   1* LAN, 10/100Mbps,  RJ45,  1* WAN, 10/100Mbps, RJ45
  • Fax over IP (T.38 and Pass-Through)

Description du produit

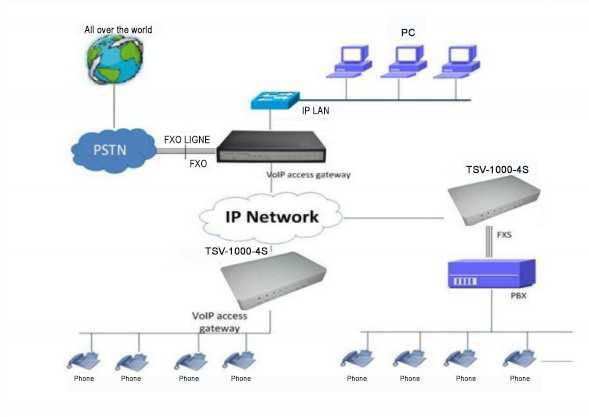

TSV-1000-4S Multi-functional analog telephone adapter which offers seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. With standard SIP protocol, it’s compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. It provides 4 FXS ports, fax over IP and flexible dial plans. Offering high-quality and reliable voice-over-IP service, the device is ideal for call centers, small and medium enterprises, SOHO and residential users

Physical Interface

  • Telephone Interface:      4* FXS, RJ11
  • Network Interface:   1* LAN, 10/100Mbps,  RJ45,  1* WAN, 10/100Mbps, RJ45 ,  Console: N/A

 FXS

  • Connection Interface: RJ11
  • Caller ID: DTMF/ FSK
  • Support Reverse Polarity
  • Dial mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Maximum wiring length: 800m
  • Programmable Call Progress Tone

Supplementary Business

  • Pick Up on Group  3-Way Conference
  • Busy Call Forwarding
  • No answer Call Forwarding
  • Unconditional Call Forwarding
  • Blind Transfer, Attend Transfer
  • Support Warm/Immediate Hotline ,Message Waiting Indicator (Voicemail) ,Call Waiting, Call Hold, Do-Not-Disturb

Software Features

  • Action URL
  • Hunting Group
  • Web access control rules
  • Telnet access control rules
  •  PPPoE/IPv4/IPv6(Bridge mode)
  • Routing Rules based on Prefixes
  •  The number of graphs(Digitmap)
  •  Caller/Called Number Manipulation

Voice Processing

    1. VLAN 802.1P/802.1Q
    2. Layer3 QoS and DiffServ
    3. Coder: G.711A/U law, G.729A/B,
    4. G.723.1, G.726, iLBC and AMR
    5. Programmable Gain Control
    6. Voice Activity Detection (VAD)
    7. Adaptive (Dynamic) Jitter Buffer
    8. Hook Flash, Silence Suppression
    9. T.38/Pass-through, Modem/POS
    10. Comfort Noise Generation (CNG)
    11. Echo Cancellation (G.168), with maximum 128ms
    12. DTMF mode:  ignal/RFC2833/Inband

VoIP Protocol

    1. RFC3266 IPv6 in SDP
    2. RFC4028 Session Timer
    3. RTP/RTCP, RFC2198, 1889
    4. Early Media/ Early Answer
    5. Primary/Backup SIP server
    6. SIP Trunks, Outbound Proxy
    7. STUN, Static/ Dynamic NAT, DTR
    8. DNS SRV/ A Query/ NATPR Query
    9. RFC2806 TEL URI, RFC3581 NAT, rport
    10. Protocol: SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311

Maintenance

    1. Web/Telnet
    2. Ping/Tracert Test
    3. Network Capture
    4. Auto Provisioning
    5. IVR local Maintenance
    6. SNMP v1/v2/v3, TR069
    7. DMCloud Management
    8. Line Diagnostics (GR909)
    9. Firmware Upgrade via Web
    10. Configuration Backup/Restore
    11. Syslog, NTP/Summer Time, CDR

Environmental

    1. Power Adapter:
    2. 100-240VAC, 50-60 Hz @ DC12V 1A
    3. Power Consumption: 5W(Typical)
    4. Operating Temperature: 0 ℃ ~ 45 ℃
    5. Storage Temperature: -20 ℃ ~80 ℃
    6. Humidity: 10%-90% Non-Condensing
    7. Dimensions(W/D/H): 195*135*35mm
    8. Unit Weight: 0.6kg
    9. Compliance: CE, FCC
