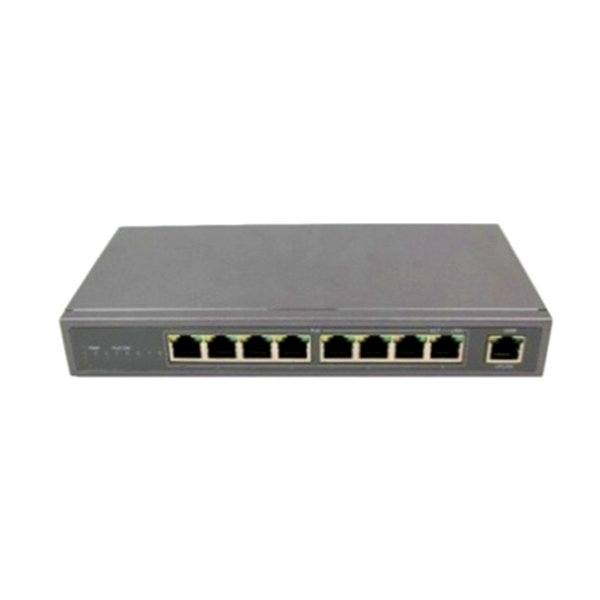

TSE-SF10081-aF/-aT

9 10/100Mbps port POE  Switch  Support IEEE802.3af / IEEE802.3aT standard

Description du produit

8 POE power supply ports,and 1 UP-Link port

Data and the power transmission distance is 100M

Backboard bandwidth: 1.8Gbps

Power Supply: 48v 2a

Each port output 15.4W max

Product Features:

1.9 self-adaptive port connect RJ45 with 10/100MBPS

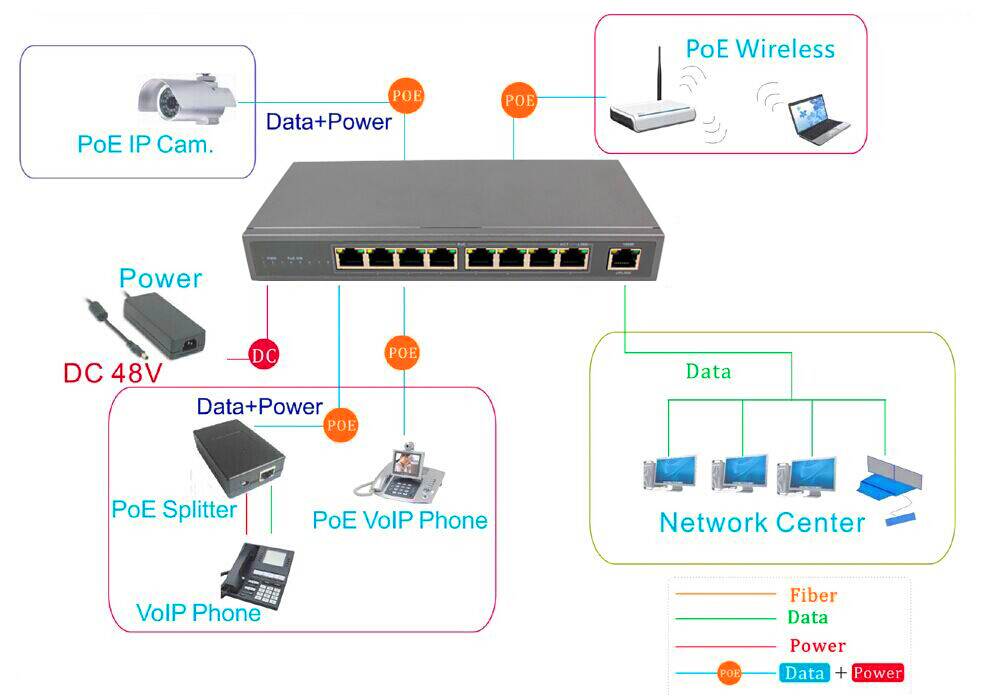

2.Supply power to AP and IP cameras when using UTP CAT5e

3.1~8 port supports IEEE802.3af Ethernet power supply standard

4.Meet the standards of IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX

5.Stream control:Full-Duplex takes IEEE 802.3x standard,Half-Duplex takes Back pressure standard.

6.Auto MDI/MDIX

7.8port IEEE802.3at (30 W) Ethernet power supply standard, compatible with IEEE802.3af (15.4 W).

8.Using store-and-forward switching mechanism

9.No fan, natural cooling

10.The switch with Small, compact and quiet design is suitable for placed on the desktop or on the wall

11.Without characteristics power is the equipment of automatically supply to self-adaptation

Product Model

Specifications

TSE-SF10081–aF

TSE-SF10081–aT

Differences

POE specifications

Support IEEE802 .3af international power supply standard

Support IEEE802 .3af,IEEE802 .3at international power supply standard

POE power
supply parameter
Single port:15.4W Single port:30W

Standard Configured Standard

DC: 48V/2A/96W ,IEEE802.3af

DC: 48V/2.5A/120W,IEEE802.3at

Network protocol
and standards

IEEE802.3i  10BASE-T
IEEE802.3u  100BASE-TX
IEEE802.3x   Flow Control
IEEE802.3af Power over Ethernet

IEEE802.3i  10BASE-T
IEEE802.3u  100BASE-TX
IEEE802.3x   Flow Control
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet

Similarities

Electrical interface parameter

·Electrical interface:RJ45

·Cable Type :UTP CAT5e Or higher level of New CAT6

·Transmission distance :100 meter

Power supply line

Data line to 1 2 3 6  Free line to 4 5 7 8 (alternative)

Performance
Specification

· Store and forwarding

· Backplane bandwidth: 1.8G EC981 series;

· Packet forwarding rate:·1.19Mpps

· Transfer mode: Full-Duplex or Half-Duplex adaption,self-adaption

· Addressing: 48 bit MAC address ·

·Mac Address Table: 1,000 MAC address per

· Network delay: 10Mbps to 100Mbps, less than 20ms under 64byte frame

LED indicators

·Per Port: Link, Activity, Speed

·Per equipment: Power LED , POE indicators LED

Safety& Emission

CE,ROHS

Dimensions

206x100x28mm(H x W x D)

Weigh(kg)

0.75kg

Environmental specifications

·Operating temperature: 0 to 55℃

·Storage temperature: -20 to 70°C

·Operating humidity: 90% maximum relative humidity, non-condensing

·Storage humidity: 95% maximum relative humidity, non-condensing

Warranty

1 year
