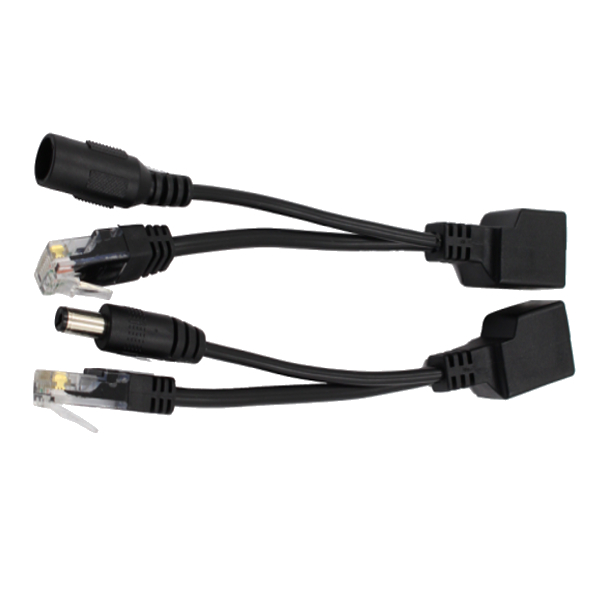

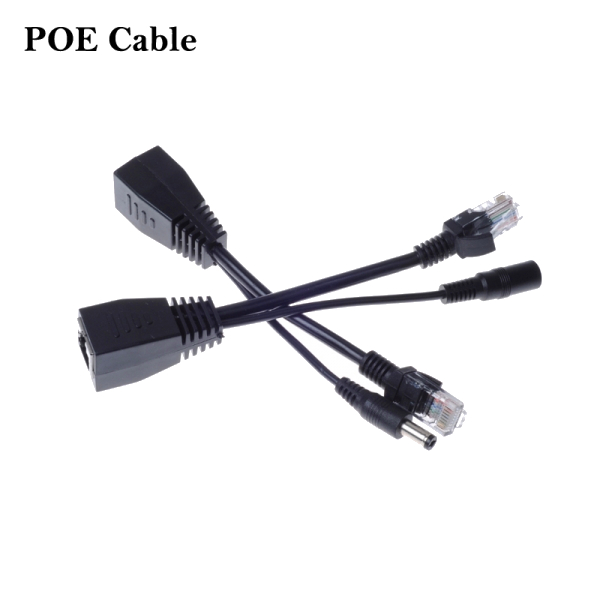

TS-POESPLIT – PoE Splitter (Indoor)

Indoor PoE Splitter Cable kits.



Product Description

TS-POESPLIT, is a economic and practical PoE powered device, with high performance and reliability ,compliant with IEEE802.3af standard, can split and compound transmitting power source and data signal, provides data and electric power to non-PoE networking device, flexibly expand family networking and office networking without being limited by the electricity cable layout ,realize ISDN .

Shield RJ45 jack ,anti-interference ,OFC material ,boost signal

Environmental protection material

Cold resistant ,high temperature resistant ,good softness

Standard OFC cable

       Item                                                 Description
PoE Power Supply Protocol IEEE803.2af
Power Supply 4/5(+),7/8(-)
Power Consumption ≤13W
Power Supply DC12V
Output Voltage DC12V

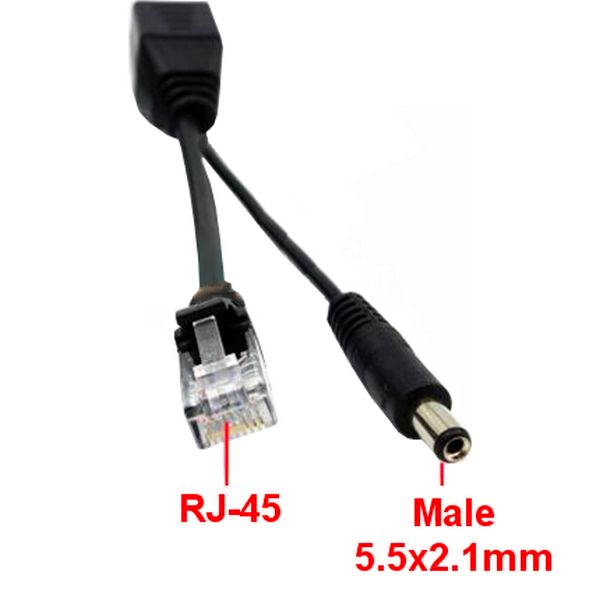

Power Output Plug  5.5mm*2.1mm
Network port parameter Ethernet Port 1×RJ45 Input
Transmission Speed 10/100Mbps
Networking Cable Cat5/5e/6 Standard Network Cable
Transmission Distance Max.30m
Operating Environmental Working Temperature 0℃~55℃
Storage Temperature -20℃~70℃
Humidity (non-condensing) 0~95%
Unit Performance Dimension (L×W×H) Size:195x20x20mm(LxWxH)
Material Plastic
Color Black
Weight 90g/pair

Téléchargement:

TS-POESPLIT Datasheet: PDF
