TS-AFD Audio Fiber Cable Detector

Detecteur de cable fibre par signal audio.

Utilisé pour repérer un cable parmi d’autres dans une chambre de tirage de cable,où les cables sont couverts de boue et difficile à les distinguer. Aussi , peut être utilisé dans un repartiteur fibre FTTH où il ya trop de cable pas facile à  les identifier.

Catégorie :

Product Description

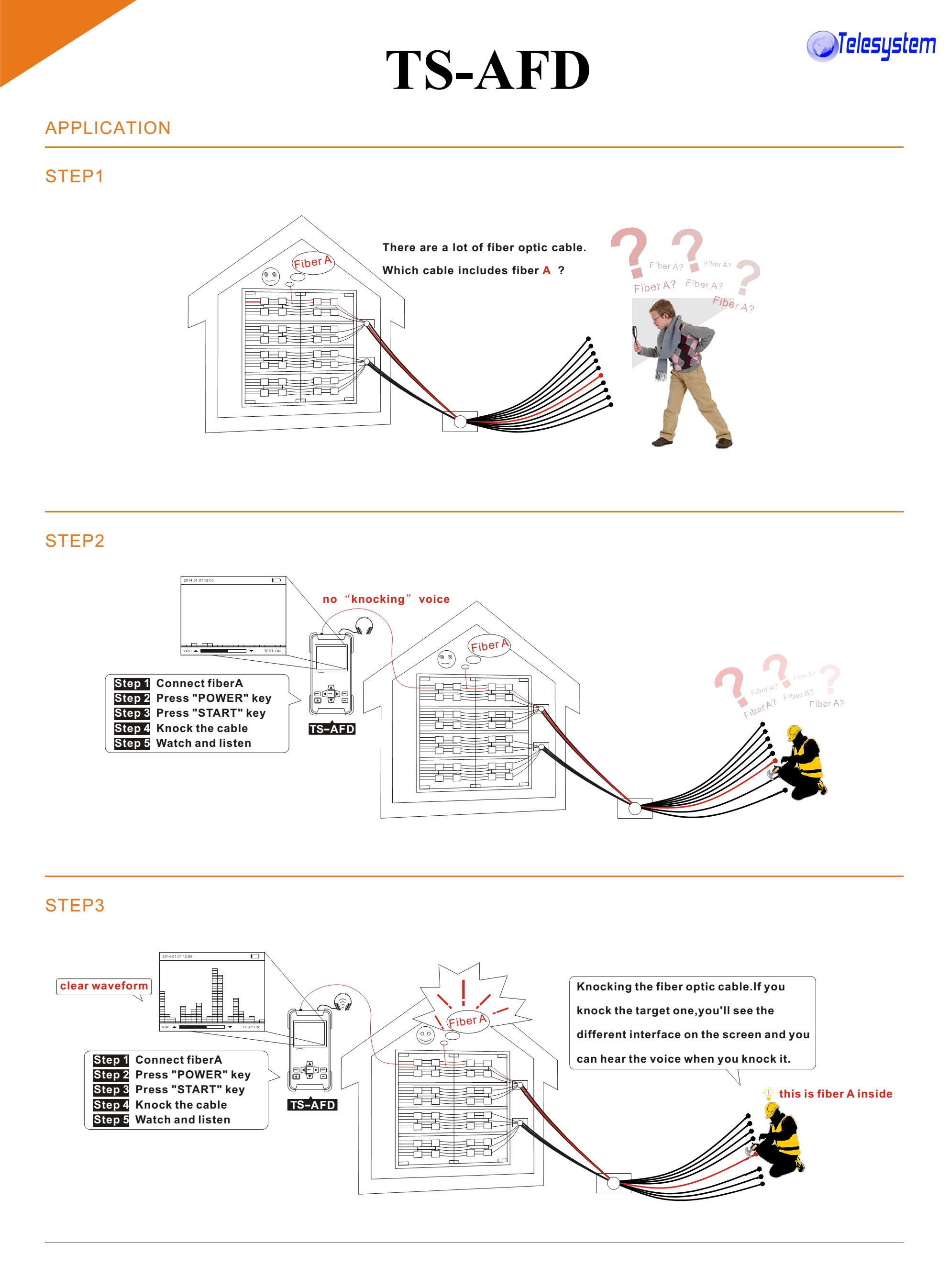

Audio Fiber Cable Detector can help you find the target fiber cable easily by knocking the cable. When knocking, you can find waveform fluctuation and hear the “knocking" voice via earphone.
  • Help to find the target fiber cable easily
  • Display the changes of waveform after cable found
  • Listen fiber cable mechanical disturbance
  • Easy to operate for beginners and experts
  • Widely application , based on most telecom user's actual needs
Model TS-AFD
Dynamic Range 10dB
Wavelength 1550nm
Application Fiber SM
Display 3.5 inch TFT color LCD
Test distance 40/90km
Laser power 0-3dBm
Earphone port 3.5mm
optical reflector return loss<2dm FC/PC connector
Power Built – in rechargeable battery
Working Time > 8 hrs
Size(H*W*D) 197mm*107mm*67mm
Weight 0.75kg
Storage Temperature -20 — +60 , < 90%RH
Operating Temperature -10 — +50 , < 90%RH
