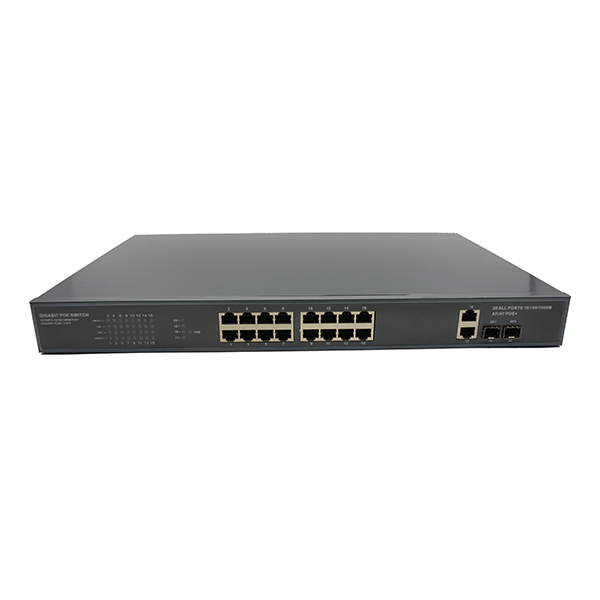

TS-SG1016P  16 ports POE Gigabit Ethernet Switch, . 2 extra gigabit RJ45+2 x 1..25Gbps SFP

for uplink.. power 300-watt

Product Description

To fulfill the demand of High Power POE for network applications with Gigabit transmission, TS-SG1016 P 2SFP Port POE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the it features IEEE 802.3af and IEEE 802.3at Power over Ethernet (POE) that combine up to 300-watt POE budget on the whole system. All RJ45 copper interfaces of it support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra gigabit RJ45+2 1.25Gbps SFP for uplink.

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • 16-Port 10/100/1000Mbps supports 52V DC power to POE Powered Device
  • 2-Port 10/100/1000Mbps RJ45+2 1.25Gbps SFP interface for uplink
  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
  • Up to 16 IEEE 802.3af devices powered
  • Supports POE Power up to 15.4 watts for each POE port
  • Up to 8 IEEE 802.3at devices powered
  • Supports POE Power up to 30 watts for each POE port
  • 300-watt POE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • Automatic address learning and address aging
  • Made of metal, desktop size and wall-mount design.
Item Description
Model TS-SG1016P
Power Supply Voltage Range AC 100-240V
Power Consumption The device <5W,                                                        POE power supply <300W
Network Port Parameter Network Ports

1~16 Ports: 10/100/1000Mbps Ethernet port, adaptive control

2-Port 10/100/1000Mbps RJ45 interface for uplink

2 Port 1.25Gbps SFP

Transmission Distance

1~18 Ethernet Port:0~100m

19-20 SFP: according to SFP module

Transmission Media 1~18 Ethernet Port:Cat5e/6 standard UTP cable
POE Agreement IEEE802.3 af/at standards
POE Power Supply Mode End-span method
POE Power Supply Wattage Each port≤30W,Whole device<300W
Network Switch Specification Network Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T
Swap Mode Store-and- forward
Switch Capacity 40Gbps
MAC Address List 8K
Status Indicators Power Indicator Light One power light (green)
POE Indicator 1~16 POE indicator light(yellow)
Network Port LED

1~18 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data

19-20 Keeps on when working

Protection Level Surge Immunity Level 3, executive standard:IEC61000-4-5
Electrostatic Protection

1a touch electric discharge: level 3  1a

Air discharge: level 3                                Executive standard:IEC61000-4-2

Operating Environment Working Temperature -10℃~55℃
Storage Temperature -40℃-85℃
Humidity(non-congeal) 0~95%
Mechanical Attributes Dimensions (L*W*H) 440mm×260mm×44mm
Color Blue
Weight 3kg
Reliability Mean time between failures (MTBF) >50000h
