Product Description

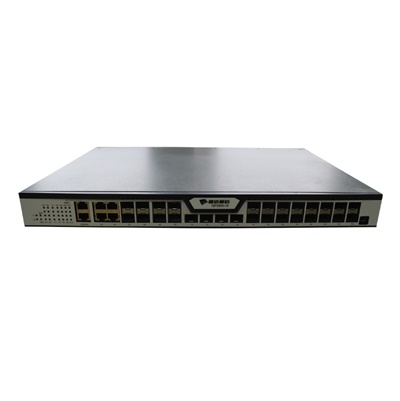

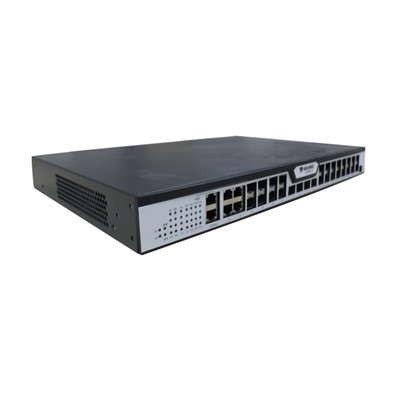

BDCOM GP3600 complies with ITU-T G.984/G.988 and meets requirements about GPON OLT inNetwork Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers. It supports the Asymmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users. Its coupling ratio ups to 1:128, and its support of different hybrid ONU networks minimize the carrier’s investment. BDCOM GP3600, based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.
- GPON: Abiding by ITU-T G.984/G.988, BDCOM GP3600 series OLTmeets relevant requirements of GPON OLT regulated in Network Access Technical Requirementsand China Telecom GPON Technical Requirements-CTC2.0;
- SystemCapacity:GP3600 series supports maximum 16 GPON ports.
- Uplink Interface: GP3600 series with 4 gigabit SFP ports, 4 gigabit combo ports, and 4 10G SFP+ ports.
- Dimensions:1U, occupies a small space.
- Environmental Protection:low power consumption and low operating cost.
- Bus Optical Fiber Protection:the link can be automatically switched when trouble occurs in the optical fiber;

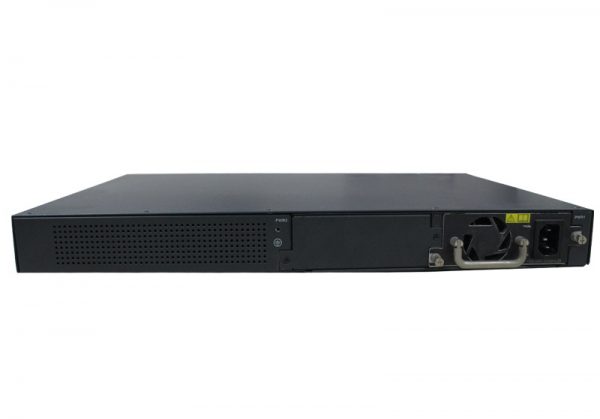

- Power Characteristics:supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.
| Attributes | GP3600-16 |
| System Capacity |
Maximum coupling ratio:1:128 Backplane bandwidth:205G MAC table capacity: 64K |
| Interface PON | 16 |
| Uplink interface | 4 gigabit SFP slots, 4 gigabit TX/SFP combo ports |
| 4 10G SFP+ slots | |
| Attributes of the PON Interface |
The transmission rate with downlink 2.5Gbps/uplink 1.25Gbps Class B+ and Class C+ GPON module Security: ONU authentication mechanism |
| Standards |
I ITU-T G.984/G.988 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad physical link static/dynamic aggregation (LACP) Ethernet – II |
| QoS |
Back pressure flow control (half duplex) IEEE 802.3x flow control (full duplex) IEEE 802.1p, CoS WRR, SP and FIFO queue schedule Limiting the uplink /down link rate based on each ONU DBA and SLA |
| VLAN |
I Port-based VLAN QinQ and flexible QinQ |
| Multicast |
L2 multicast IGMP Snooping MLD Snooping |
| Layer-3 routing functions | Static routing, RIP and OSFP,OSFP/OSPFv3 |
| Security |
Limitation to the number of MAC addresses on the port Port protection Port storm control |
| Reliability |
Unidirectional Link Detection (UDLD) Hot swap of the GPON optical module Optical path protection of GPON (type B/C, hand-in-hand) Abnormal luminescence ONU detection such as long luminescence |
| Network Security |
Limiting the maximum number of users on each port Port isolation Packet storm control Flow-based ACL access control function Transmission data encryption on the PON interface |
| Configuration Management | Various management modes such as CLI, SNMP and telnet |
| Conducting software upgrade through TFTP/FTP | |
| Debug output | |
| Physical Characteristics | Dimensions mm (W×D×H): 442.5x304x 44 |
| Installation: standard 19-inch rack-mount | |
| Weight:5.25Kg | |
| Environment | Operating environment: 0℃-45℃; 10%-85% non-condensation |
| Storage environment: -40℃-80℃; 5%-95% non-condensation | |
| Power supply | Input voltage: AC90～240V, DC 36 ~ 72V |
| dual-power input, DC/AC power supply and hot-swap |
| Model | Description |
| BDCOM GP3600-16 | OLT with 1 console port, 1 out-band 10M/100M port, 16 fixed GPON ports(excluding the OLT SFP optical module), 4 gigabit SFP ports, 4 gigabit combo TX/SFP ports, 4 10GE ports, a standard AC90-240V power supply，expandable dual power supply, 19-inch rack-mounted installation |
| BDCOM GP3600-16-DC | OLT with 1 console port, 1 out-band 10M/100M port, 16 fixed GPON ports(excluding the OLT SFP optical module), 4 gigabit SFP ports, 4 gigabit combo TX/SFP ports, 4 10GE ports, a standard DC -36~-72V power supply，expandable dual power supply, 19-inch rack-mounted installation |
| PWR-200-DC | GP3600-16 OLT DC power supply (input voltage DC -36V～-72V, max power 200W) |
| PWR-200-AC | GP3600-16 OLT AC power supply (input voltage AC 90～240V, max power 200W) |
| OLT-GSFP-B+ | OLT SFP module, Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface |
| OLT-GSFP-C+ | OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface |
