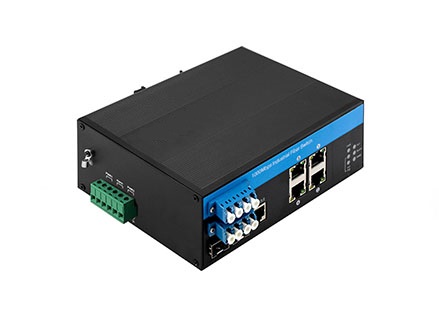

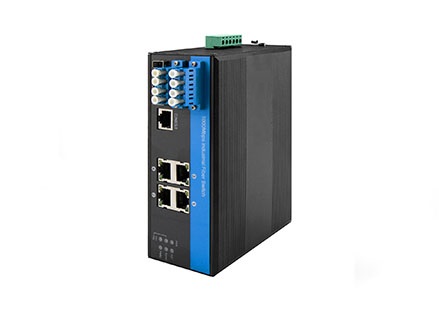

Fiber Bypass industrial switch

Managed industrial switch with Bypass

-4 ports  10/100/1000Mbps 2 x 2.5G SFP port + BYPASS  for fiber optic protection

-8 ports  10/100/1000Mbps 2 x 2.5G SFP port + BYPASS  for fiber optic protection



Catégorie :

Product Description

Industrial fiber bypass switch models:

 TS-FBS-4T-2F :  4 x 10/100/1000Mbps Auto-sensing RJ45 ports, 2 5G SFP fiber ports, 2 x Bypass ports

 TS-FBS-8T-2F :  8 x 10/100/1000Mbps Auto-sensing RJ45 ports, 2 5G SFP fiber ports, 2 x Bypass ports

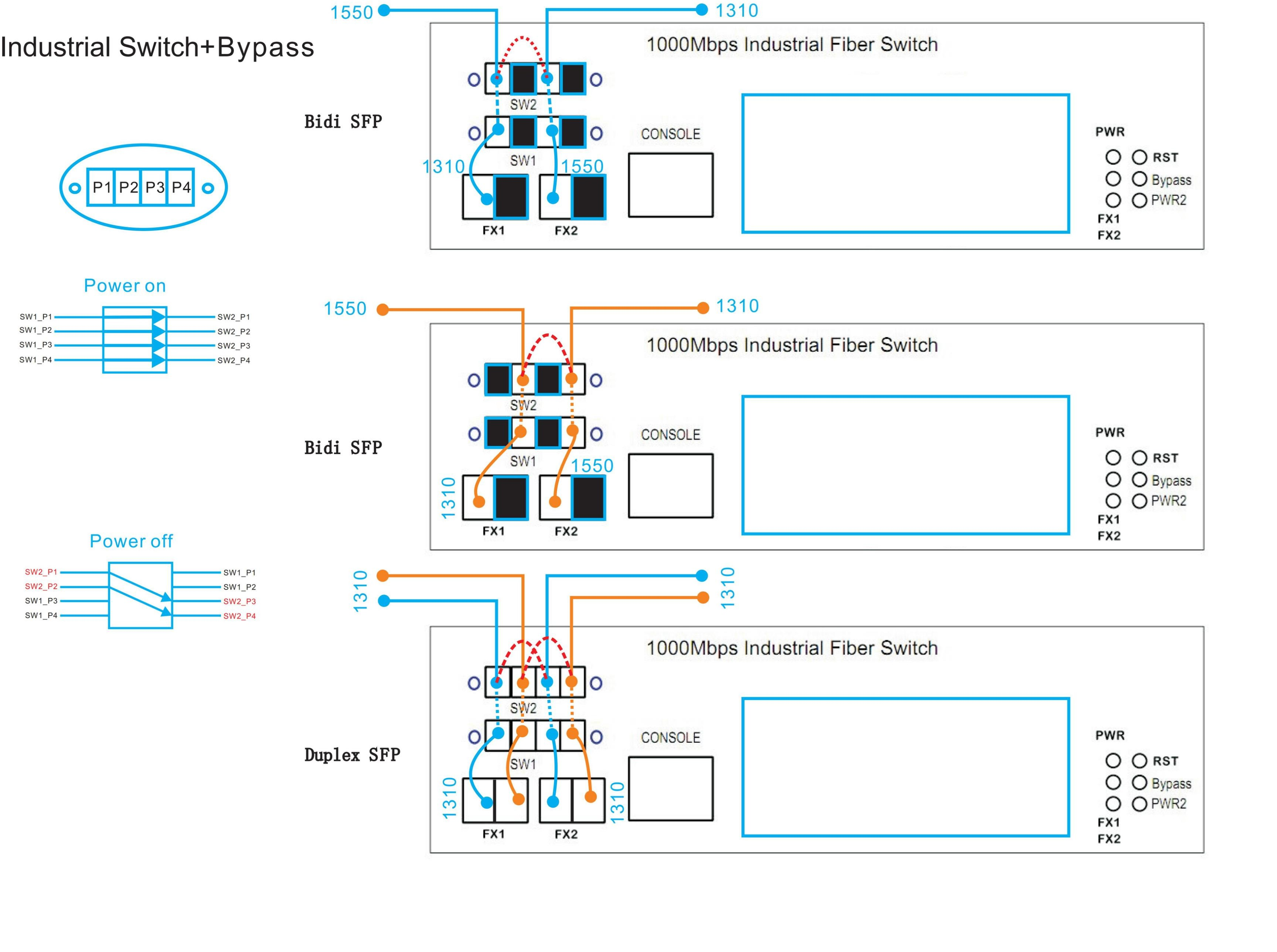

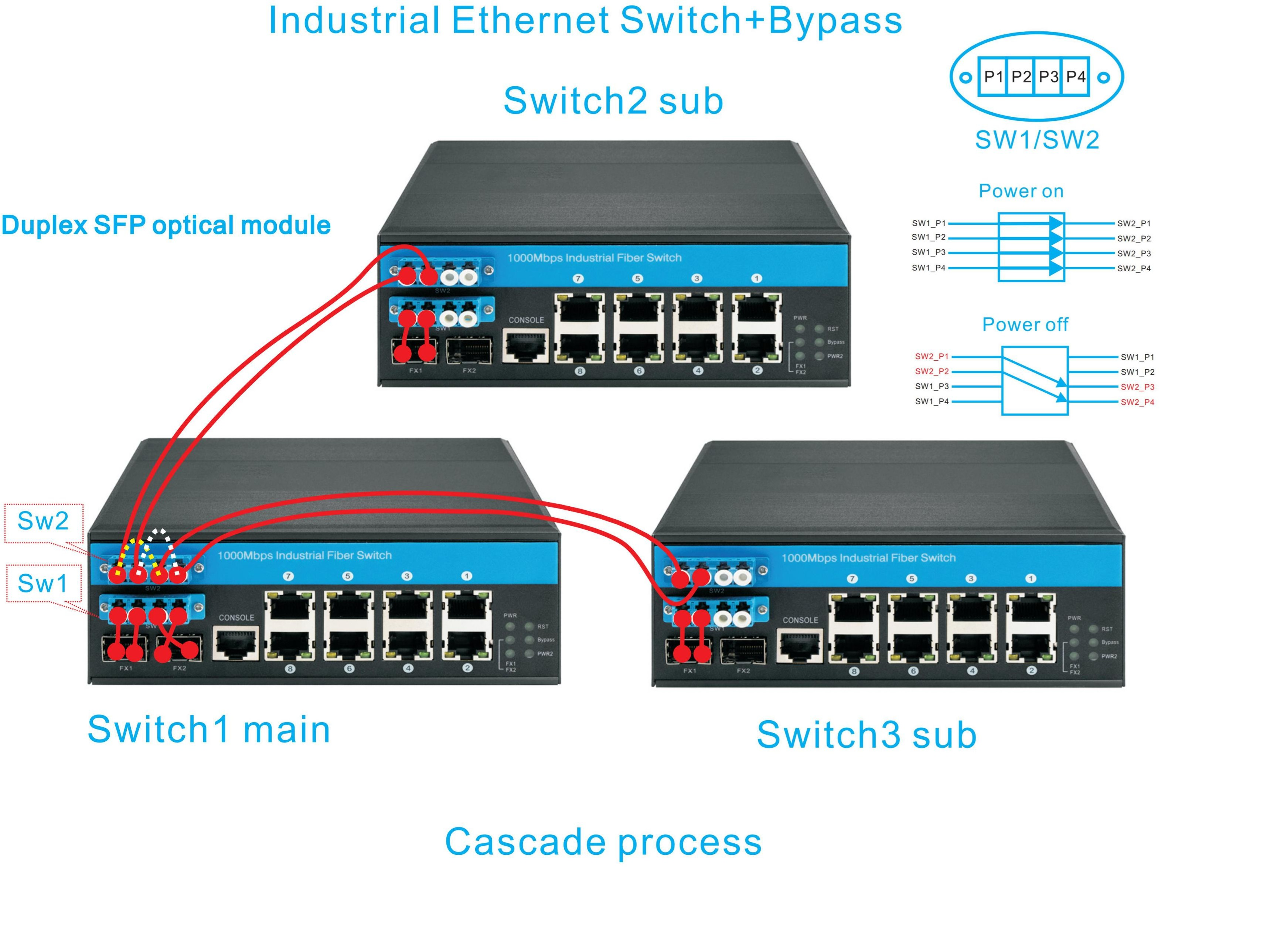

As an indispensable part of optical communication & protection system, the managed fiber bypass is highly reliable and stable for different optical path needs such as

  • Metropolitan area network (MAN)
  • Dynamic configuration of add/drop multiplexing
  • System monitoring
  • Laboratory research and development

Meantime, the fiber pass switch characterizes

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Channel Crosstalk
  • Wide voltage dual power input
  • Web GUI management
  • Din rail installation
  • FCC and CE certification
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 5G SFP fiber ports, 2 x Bypass ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports,
  • 2 5G SFP fiber ports, 2 x Bypass ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 3x standard, half-duplex with Back pressure standard
  • IEEE 3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c
  • Support cable diagnosis and can locate the fault point
  • Support 3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

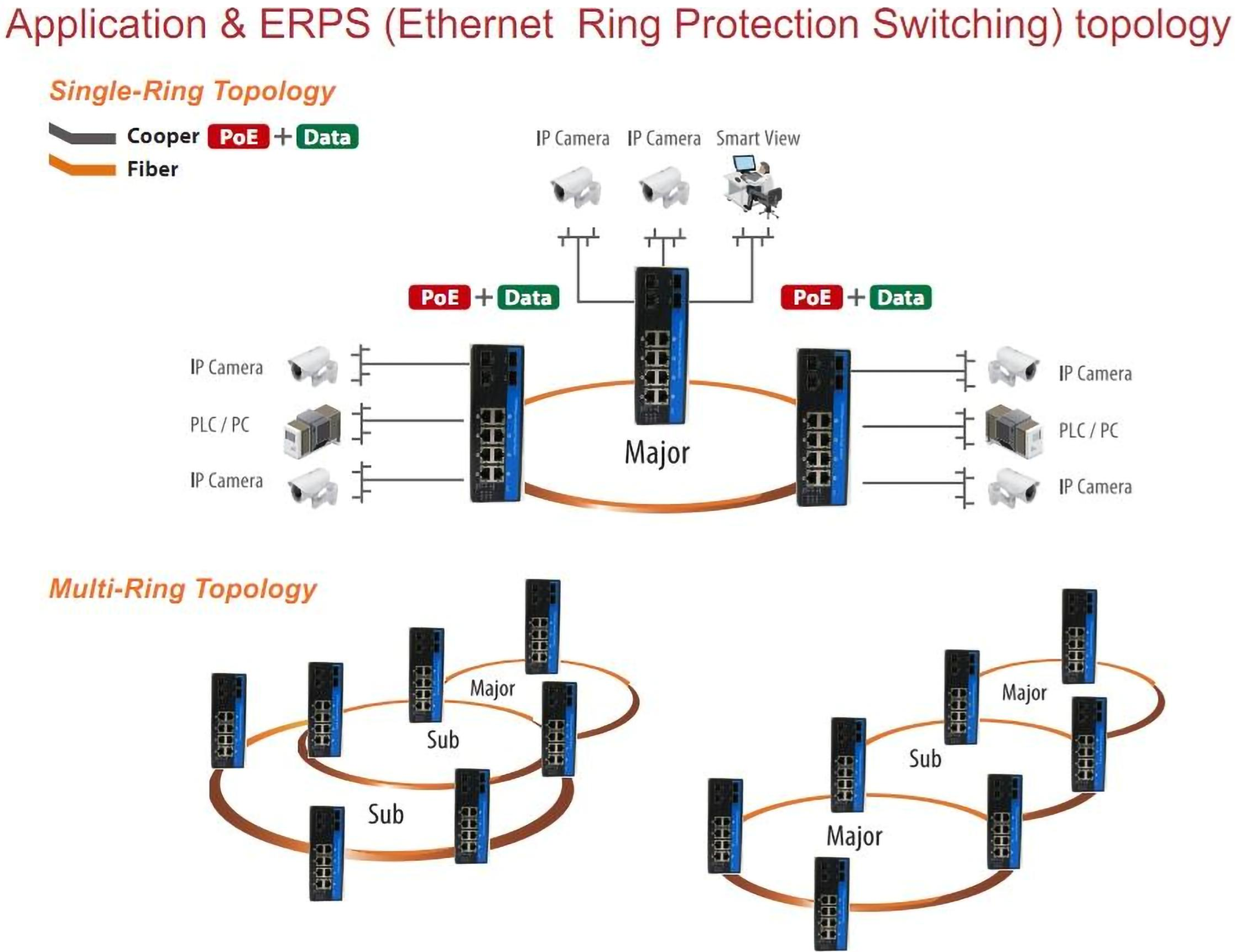

  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  • Support 1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic 3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac 1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS,
Product Name 10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+4TP)
Model No. TS-FBS-4T-2F,  TS-FBS-8T-2F
Port

2 x 2.5G SFP port

SM：1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM：1310nm, 2Km;

4×10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing）
Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad,

IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address             Table 8K
Switching features

Transmission mode：storage and forward

System bandwidth：58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km
LEDs Power, network, fiber, bypass
Power supply

Input voltage: DC 9-52V; No-load power: 5W;

Reverse connection: support
Environment Working Temp：-40°～ 85°C ; Storage Temp：-40°～ 85°C;Working humidity：10%～90%, non-condensing; Storage humidity：10%～95%, non-condensing
Industry Standards

EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN

61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control：NEMA-

TS2; Vibration：IEC 60068-2-6; Freefall：IEC 60068-2-32; Shock：IEC 60068-2-27; Rail

Traffic：EN 50121-4
Mechanical information Shell：Corrugated metal shell; Safety class：IP40; Dimension：155 x 113x 60mm
Category Unit Specification
Wavelength range Nm 850±40/1300±40 1260~1650
Test wavelength Nm 850/1300 1310/1550
Insert loss db 850/1300 Typ:0.6 Max:1.0
Return loss  db MM≥30 SM≥50
Channel crosstalk  db  MM≥35 SM≥55
Polarization loss  db ≤0.05
Wavelength loss  db ≤0.05
Temperature loss   db ≤0.05
Repeat-ability   db ≤0.05
Operating voltage  V 3.3v-5v
Service life  Times ≥100000000
Switching time  ms ≤10
Transmission optical power  mw ≤500
Operating temperature  ºC  -20~+70
Storage temperature  ºC  -40~+85
