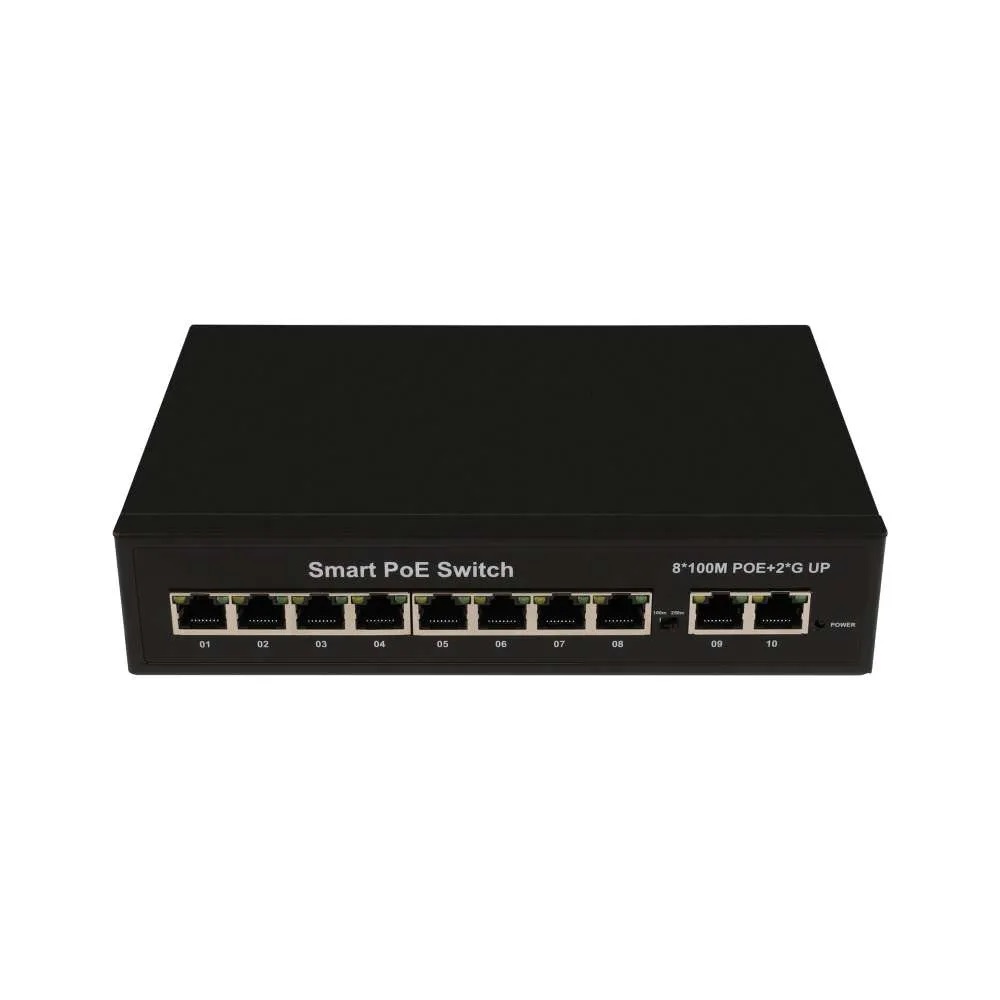

10 Ports 100M PoE Switch- extended distance 250m

  • 8*10/100M + 2*1000MRJ45 Port PoE Switch, 1-8 ports support to AF/AT;
  • The power supply total is 120W;
  • Model: TS-SF1208P-250M
Catégorie : Étiquettes : , , ,

Product Description

10 Ports 100M PoE Switch with Build-in PoE Switch                                                                        Datasheet

Model: TS-SF1208P-250M   with extend 300meter distance

  • 8*10/100M + 2*1000MRJ45 Port PoE Switch, 1-8 ports support to AF/AT;
  • Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3abstandards;
  • Support 10M/250 meters long distance transmission&Vlan;
  • PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port,Maximum power: 30W/port;
  • Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
  • The power supply total is 120W;
Model TS-SF1208P-250M
Fixed Port

8*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000 Base-T Uplink RJ45 ports (Data)

POE Port Port 1-8 support PoE af/at
Function The port 1-8 support 10M/250 meters long distance transmission and Vlan.
Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;


Ethernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode Store and Forward
Switching Capacity 5.6Gbps
Buffer Memory 1.25M
Twisted Pair Transmission

10BASE-T:Cat5 UTP(≤250 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter)

Power Supply Pin Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 120W (52VDC)
Power Consumption Standby:<2W;Full load:<120W
LED Indicator

Power indicator: PWR (Red);

Network indicator: 1-8(Link/Act)/ (Green),9–10(Link/Act)/ (Green);

Extend Function indicator: (Green)

Power Supply Build-in power adaptor AC100~240V 50-60Hz,120W
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension 220x140x45mm
Net /Gross Weight <1kg / <1.5kg
Installation Method desktop type ,wall mounted

EC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV

Protection Level IP30
Certification CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
