BDCOM S3700 Series L3 10G Series Switches

MPLS, VPN and network security based on L2/L3/L4 wire-speed switching service.

POE and non POE models

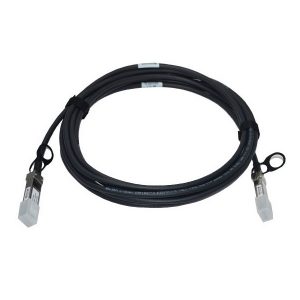

Accessories

Description du produit

BDCOM S3700 Series is a new generation of aggregation 10G switches introduced by Shanghai Baud Data Communication Co., LTD. It is targeted at the IP MAN (metropolitan area network), campus networks and enterprise networks. It is developed on the basis of high performance hardware and BDROS – a software platform with BDCOM own independent intellectual property rights. It supports multiple services like IPv6, MPLS, VPN and network security based on L2/L3/L4 wire-speed switching service. It also supports nonstop upgrade, continuous forwarding, graceful restarting and redundancy protection.

BDCOM S3700 Series has 8 models: S3740, S3740F, S3756, S3756F, S3732M and S3756M. It supports 48 Gigabit ports and 8 10GE ports.

POE MODELS:

S3732PS3756P

Advanced Hardware Architecture and Industry-Leading Port Intensity

  • 1U box-shaped switch with 48 GE ports and 8 10GE ports with high-performance ASIC switch chip
  • 64K MAC and 64K routing items.

Innovative Virtual Cluster Switching Technique

  • Innovative BVSS (BDCOM Virtual Switch System): virtualize multiple physical devices into one. The performance, reliability and management of the virtual system are superior to the physical ones.
  • Improved Performance: BVSS makes full use of each link in the physical devices, which avoids STP blocking the link and protects the original link to the maximum extent.
  • High Reliability: Based on the advanced distribution mechanism and efficient cross-physical link aggregation link function, the logic control plane, service control plane and service data plane are separated. Thus, the device can support continuous layer3 routing forwarding, avoiding service interruption as a result of a single point of failure.
  • Easy Management: BVSS realizes single IP management, greatly improving the networking efficiency and lowering the operating cost.

Carrier-Level High Reliability

  • Based on HPS (Hitless Protection System), the key components of S3700 series such as the power module support dual back-up, hot-swap, seamless switching in the downtime without manual intervention.
  • Supports STP/RSTP/MSTP, VRRP protocol, Ethernet ring protection, dual master-slave uplink protection and LACP link aggregation.
  • Supports ISSU (In-Service Software Upgrade).
  • Supports BFD mechanism.
  • Supports Ethernet OAM mechanism, 802.3ah, 802.1ag and ITU-Y.1731.
  • High reliability (99.999%): MTTR of S3700 Series is 50ms, meeting the requirement of the carrier-level service.

Varied Service Characteristics

  • Supports layer2 and layer3 multicast routing protocol, which enable the device can access to IPTV, HD video surveillance and HD video conference.
  • Supports layer3 routing protocol and super-large routing table capacity, which enables the device is available in large campus networks, enterprise networks and industry networks.
  • Supports layer2 and layer3 MPLS VPN.

Versatile Ipv6 Solution

  • Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, DHCPv6, etc.
  • Supports Ping, Traceroute, Telnet, SSH, ACL.
  • Supports MLD, MLD Snooping, IPv6 static routing, RIPng, OSPFv3 and BGP4+, etc.
  • Supports IPv6 tunnel: manual tunnel, automatic tunnel, GRE tunnel, 6to4, ISATAP
  • Supports IPv4 transits to IPv6: IPv6 manual tunnel, automatic tunnel, 6 to 4 tunnel, ISATAP tunnel.

Complete Security Mechanism

  • Equipment-Level Security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.
  • Security Authentication Mechanism: IEEE 802.1x, Radius and BDTacacs+
  • Enhanced Service Security Mechanism: supports the plaintext or MD5 authentication of relevant routing protocol, URPF, deep inspection of hardware packet, control packet and data packet and filtering technology.

Innovative Energy-Saving Design

  • Intelligent power management: The power system of S3700 series supports real-time monitoring the device and the slow-start. It is also power-saving.
  • Intelligent fan management system: The fan system of S3700 Series supports automatic speed regulation, which efficiently slow the fan speed and mitigate the noise.
  • Comply with the international standard IEEE 802.3az.

Technical Parameters

 Item

S3740

S3740F

S3756B

S3756F

Backplane

256 Gbps

256 Gbps

256 Gbps

256 Gbps

Forwarding

168 Mpps

168 Mpps

192 Mpps

192 Mpps

RAM

256MB

256 MB

256 MB

256 MB

Flash

16 MB

16 MB

16 MB

16 MB

MAC table

32K/64K

32K/64K

32K/64K

32K/64K

Ports

32 Gigabit TX ports +8 10G SFP ports

24 Gigabit SFP ports+8 Gigabit TX ports+8 10G SFP ports

48 Gigabit TX ports +8 10G SFP ports

48 Gigabit SFP ports+4 Combo Gigabit TX ports+8 10G SFP ports

Dimensions mm (W×D×H)

442.5×350×44 442.5×350×44 350×442.5×44 350×442.5×44

Power

AC: 100V-240V, 50Hz±10%

DC: -36V~-72V (POE doesn’t support DC power)

Dual-power is optional

Environment

Operating temperature/humidity: 0℃-50℃; 10%-90% non-condensing

Storage temperature/humidity: -20℃-70℃; 5%-95% non-condensing

MAC exchange

Static configuration and dynamic MAC learning

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

Black-hole MAC list

VLAN

4K VLAN

GVRP

1:1 VLAN mapping and N:1 VLAN mapping

QinQ and flexible QinQ

PVLAN

STP

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU protection, root protection, and loopback protection

Multicast

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group strategy and quantity limitation

Multicast flow copying over VLANs

PIM-SM and PIM-DM

IPv4

Static routing, RIP v1/v2, OSPF, BGP

Policy based routing

Load balance by equivalent routing

BFD for OSPF, BGP

IPv6

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD V1/V2

IGMP snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6to4 tunnel

MCE

MCE

MPLS VPN

LDP protocol

P/PE of MPLS VPN

MPLS OAM

QoS

Flow classification based on L2~4 protocols

CAR flow limit

802.1P/DSCP priority re-labeling

SP, WRR, and “SP+WRR”

Congestion avoidance mechanisms like Tail-Drop and WRED

Flow monitoring and flow shaping

Security features

L2/L3/L4 ACL flow identification and filtration

DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc

Broadcast/multicast/unknown unicast storm-control

Port isolation

Port security, and “IP+MAC+port” binding

DHCP snooping and DHCP option 82

IEEE 802.1x authentication

Radius BDTacacs+ authentication

URPF

Level-based command line protection

Reliability

1+1 power backup

Static/LACP link aggregation

EAPS

VRRP

GR for OSPF,BGP

BFD for OSPF,BGP

ISSU uninterrupted system upgrade

Management

Console, Telnet, SSH 2.0, Web

SNMP v1/v2/v3

TFTP

RMON

sFLOW

Energy saving

IEEE 802.3az


Ordering Information

S3700 Series

Item

Description

S3740

Ethernet routing switch with 24 Gigabit TX ports+8 Gigabit SFP ports+8 10G
SFP ports (1 Mini USB Console port, 24 Gigabit TX ports, 8 Gigabit/100M
auto-adaptation SFP ports, 8 10G/G auto-adaptation SFP+ ports;  hot-swap AC 220V power, extensible dual
power supply; the cooling fan, 1U, standard 19 inch rack-mounted installation)

S3740F

Ethernet routing switch with 24 Gigabit SFP ports+8 Gigabit TX ports+8 10G
SFP ports (1 Mini USB Console port, 24Gigabit/100M auto-adaptation SFP ports,
8 Gigabit TX ports, 8 10G/G auto-adaptation SFP+ ports; hot-swap AC 220V
power, extensible dual power supply; the cooling fan, 1U, standard 19 inch
rack-mounted installation)

S3756

Ethernet routing switch with 48 Gigabit TX ports+8 10G SFP ports (1 Mini
USB Console port, 48 Gigabit TX ports, 8 10G/G auto-adaptation SFP+ ports; hot-swap
AC 220V power, extensible dual power supply; the cooling fan, 1U, standard 19
inch rack-mounted installation)

S3756F

Ethernet routing switch with 48 Gigabit SFP ports+4 Combo Gigabit TX
ports+8 10G SFP ports (1 Mini USB Console port, 48Gigabit/100M
auto-adaptation SFP ports, 4 Combo Gigabit TX ports, 8 10G/G auto-adaptation
SFP+ ports; hot-swap AC 220V power, extensible dual power supply; the cooling
fan, 1U, standard 19 inch rack-mounted installation)

S3732P

Ethernet routing switch with 24 Gigabit TX ports+ 8 10G SFP+ ports (1
Mini USB Console port, 24 Gigabit POE  ports, 8 10GE/GE auto-adaptation SFP+ ports;
hot-swap AC 220V power supply, extensible dual power supply; the cooling fan,
1U, standard 19 inch rack-mounted installation)

S3756P

Ethernet routing switch with 48 Gigabit TX ports+ 8 10G optical ports (1
Mini USB Console port, 48 Gigabit POE  ports, 8 10GE/GE auto-adaptation optical
ports, 2 power slots; no power supply, the cooling fan, 1U, standard 19 inch
rack-mounted installation)

S3732M

Ethernet routing switch with 12 Gigabit TX ports, 12 gigabit  optical ports and 8 10G optical ports (1
Mini USB Console port, 12 Gigabit TX  ports, 12 1000M/100M auto-adaptation optical
ports, 8 10GE/GE auto-adaptation optical ports, 2 power slots; a hot-swap
AC220V power supply, the cooling fan, 1U, standard 19 inch rack-mounted
installation)

S3756M

Ethernet routing switch with 24 Gigabit TX ports, 24 gigabit  optical ports and 8 10G optical ports (1
Mini USB Console port, 24 Gigabit TX  ports, 24 1000M/100M auto-adaptation optical
ports, 8 10GE/GE auto-adaptation optical ports, 2 power slots; a hot-swap
AC220V power supply, the cooling fan, 1U, standard 19 inch rack-mounted
installation)

S3756M-DC

Ethernet routing switch with 24 Gigabit TX ports, 24 gigabit  optical ports and 8 10G optical ports (1
Mini USB Console port, 24 Gigabit TX  ports, 24 1000M/100M auto-adaptation optical
ports, 8 10GE/GE auto-adaptation optical ports, 2 power slots; a hot-swap
DC-48V power supply, the cooling fan, 1U, standard 19 inch rack-mounted
installation)

S3700 Series Non-POE power modules

PWR-150-AC

S3700 Series Non-POE Hot-swap AC Power (Max Power 150W, AC100~240V input,
the independent cooling fan)

PWR-150-DC

S3700 Series Non-POE Hot-swap DC Power (Max Power 150W, DC-36V ~ -72V
input, the independent cooling fan)

S3700 Series POE Power Modules

POE-500-AC

S3700 Series POE Hot-swap AC Power (Max Power 500W, POE 370W, AC100~240V
input, the independent cooling fan)

POE-1100-AC

S3700 Series POE Hot-swap AC Power (Max Power 1100W, POE 720W, AC100~240V
input, the independent cooling fan)
