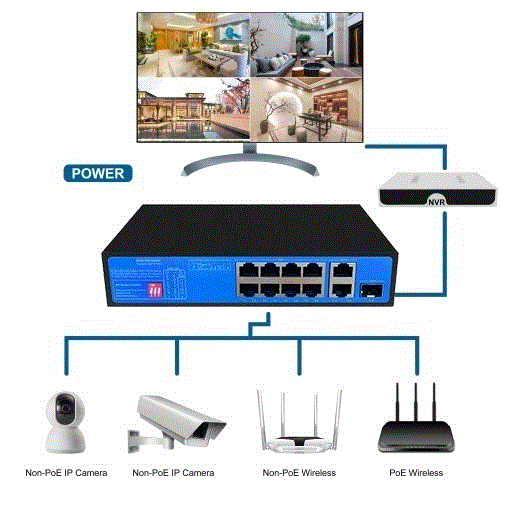

11 Port Gigabit PoE Switch with Build-in Power Supply with extend 300meter distance
Model: TS-SG1208P-250M Datasheet
8*10/100/1000Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)
1*10/100/1000Base-T/TX SFP Ports(Data)
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3x
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
Power indicator: PWR (Green);
Network indicator: 1-8(Link/Act)/ (Green),9–11(Link/Act)/ (Green)
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
