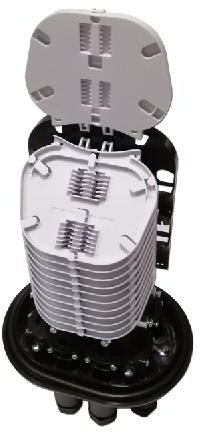

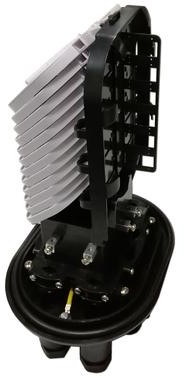

FOSC 144 DOM

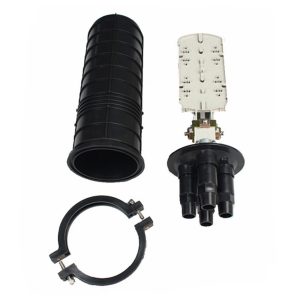

Oval dome type fiber optic splice closure:

Max. 12pcs  fiber optic splice tray, max. 288 fibers

6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting

Mechanical sealing structure, IP68



Description du produit

FOSC 144 DOM is an oval dome type fiber optic splice closure that support fiber splicing and protection. It is waterproof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct or buried application.
  • Impact resistant PP material, black color Mechanical sealing structure, IP68
  • Max. 12pcs OST-061 fiber optic splice tray, max. 288 fibers Can load max. 18pcs SC simplex adapters
  • Two splitter space for PLC 1×8, 1×16
  • 6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting
  • Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance. Support wall mounted, pole mounted, aerial hanged, direct buried.
Item Name Specification Qty
1 Plastic tube

Outside Ф4mm, thickness 0.6mm,

plastic, white

1 meter
2 Cable tie 3mm*120mm, white 12 pcs
3 Inner hexagon spanner S5 black 1 pc
4 Heat shrinkable protection sleeve 60*2.6*1.0mm

As per using

capacity
