Product Description

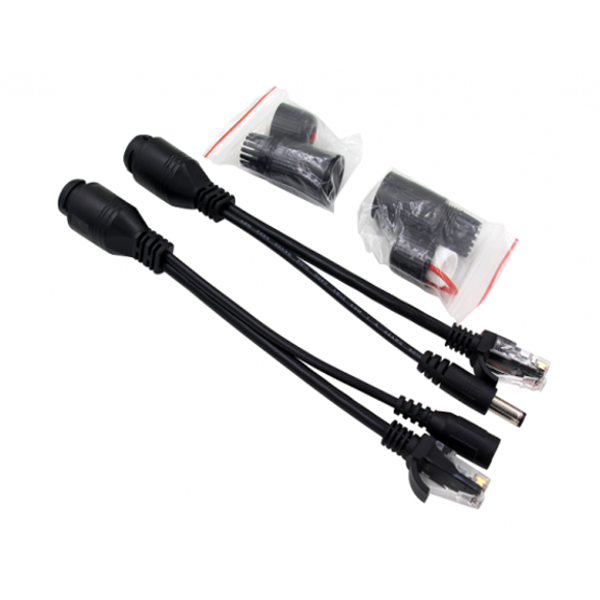

The complete Passive Power over Ethernet contains two pieces – INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet.
The pair POE cable include: 1 pcs injector and 1 pcs splitter,complete set for wide range of network products such as Access Points, Routers, IP cameras
| Item | Description | |
| PoE Power Supply | Protocol | IEEE803.2af |
| Power Pin | 4/5(+),7/8(-) | |
| Power Consumption | ≤13W | |
| Power Supply | DC12V | |
| Output Voltage | DC12V | |
| Power Output plug | 5.5mm*2.1mm | |
| Network port parameter | Ethernet Port | 1×RJ45 Input |
| Transmission Speed | 10/100Mbps | |
| Networking Cable | Cat5/5e/6 Standard Network Cable | |
| Transmission Distance | Max.30m | |
| Operating Environmental | Working Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~70℃ | |
| Humidity (non-condensing) | 0~95% | |
| Unit Performance | Dimension (L×W×H) | Size:195x20x20mm(LxWxH) |
| Material | Plastic | |
| Color | Black | |
| Weight | 100g/pair | |
Download:
TS-POESPLIT_Datasheet: PDF
