TSV-BNC-VGA: Convertisseur BNC-VGA

Convertisseur BNC BNC s-vidéo VGA vers VGA HD 1080P , adaptateur de sortie VGA, boîtier de commutation numérique pour PC Mac TV, caméra DVD DVR

Catégorie :

Product Description

Many models of CCTV equipment are with 12V power output. Cater for this need of the market; TSV-BNC-VGA was born. It is compatible with power supply of voltage 5v~19v, not only expands the application of working with equipment of different output voltage, but avoids the accident when power supply with high voltage is used by mistake. It converts Composite Video or S-Video to VGA, and up-scales 720×576 / 720×480 to 1280X1024at the maximum. With this portable converter box, you can make your old CRT PC monitor the use of a professional CCTV monitor. According to our testing result and the feedback from the market, it is able to work last for 7×24 hours.

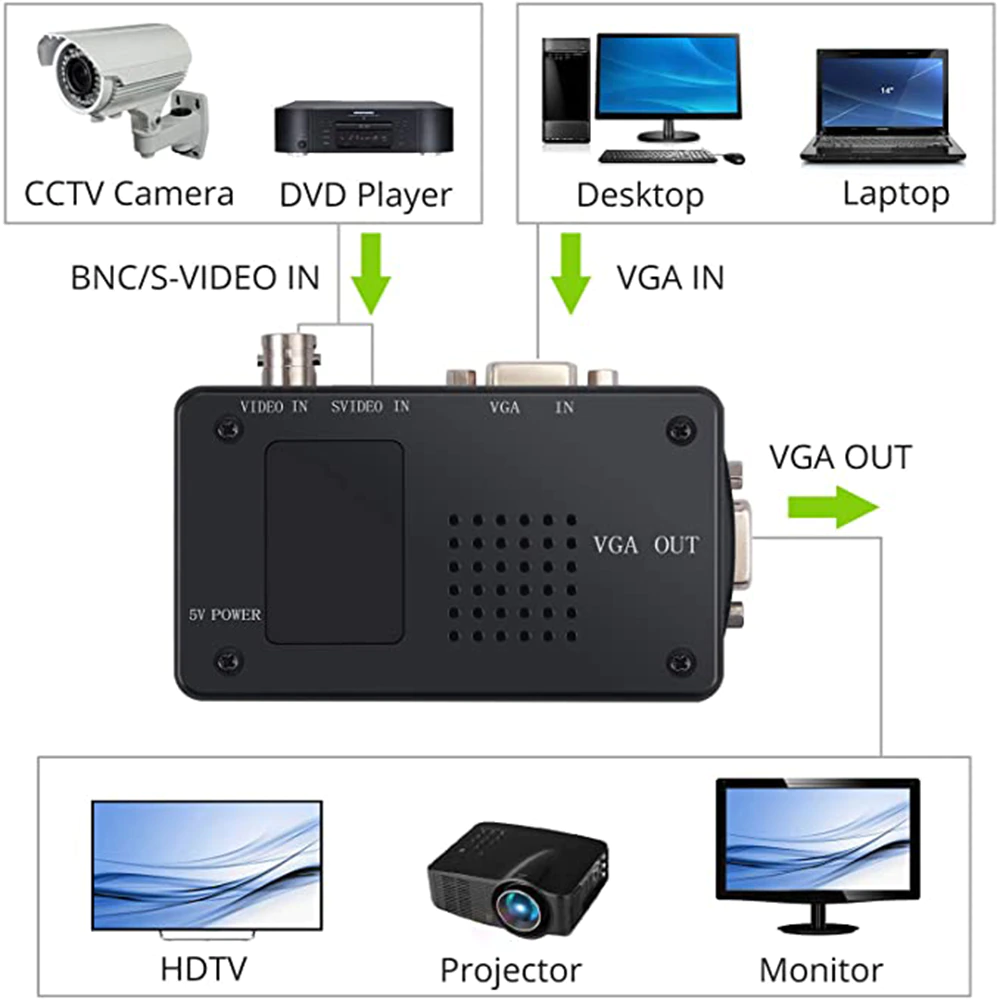

  • Inputs: 1 * Composite Video, 1 * S-Video, 1 * VGA;
  • Output: 1 *VGA;
  • Composite Video Interface: BNC
  • Switch between the 3 inputs and output one of them to VGA;
  • The VGA input is pass through to the VGA output without any processing;
  • Both PAL / NTSC are supported;
  • Optional Resolution: 800 X [email protected], 800 X [email protected], 1024 X [email protected], 1280 X [email protected],
  • Brightness, hue, contrast, saturation, color, are adjustable and auto-save when power off
  • Optional function: Remote Control.




To connect VGA display(Computer monitor or LCD)

Video In

To connect Composite Video devices(eg:DVR.CDD Camera.etc)

S-Video In

To connect S-video devices


To connect PC host


To connect power supply

LED Indication

Shows working status.
