MEDIA CONVERTER 1SFP-to-1RJ45 10/100/1000M

Ethernet media converter that convert media transmission between UTP copper cable and fibre SFP,

10/100/1000Base-TX to 1000BASE-FX Converter, 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter

Product Description

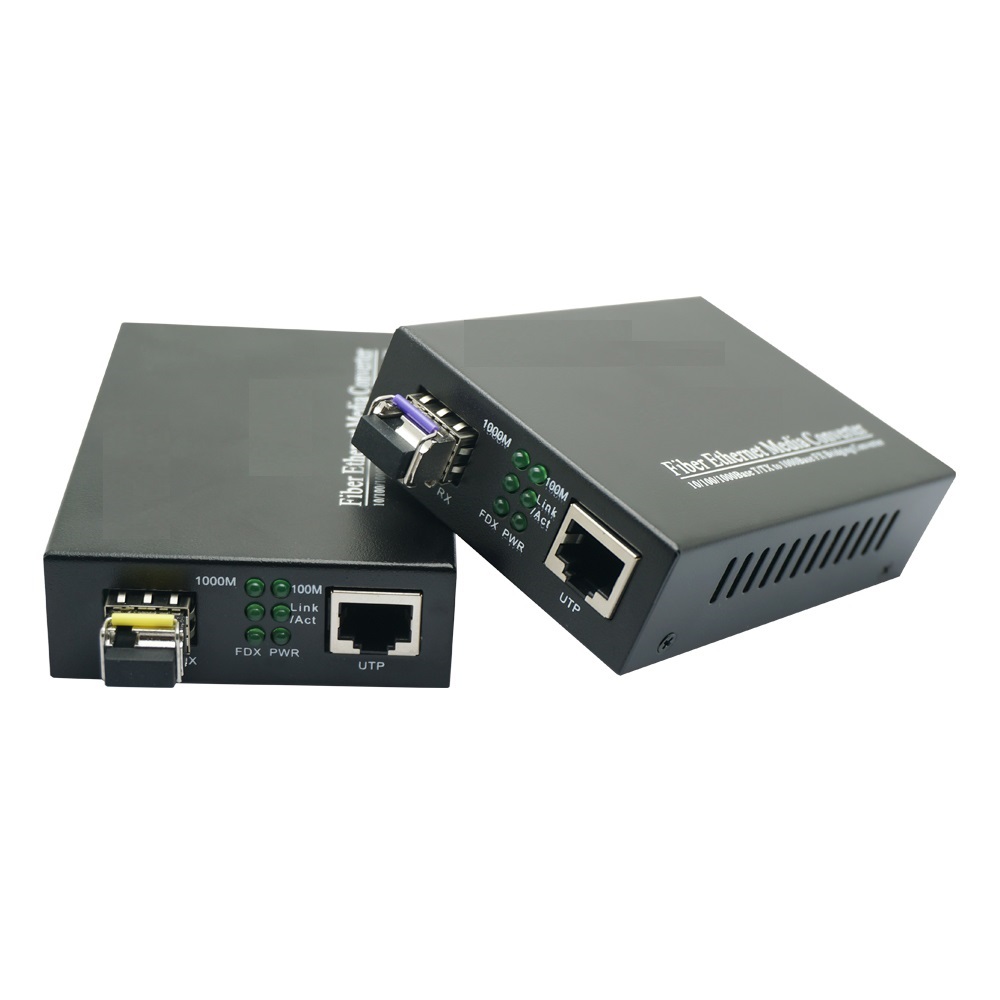

1SFP and 1RJ45 Port SFP Media Converter Series converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver.

It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km.

It can be installed into a Standard Converter Chassis.

The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.


• 10/100/1000Base-TX to 1000BASE-FX Converter

100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter

• Standard: IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab

• Interface: 1 x RJ-45 connector / 1 x SFP Slot

• Plug-and-Play installation

• Support Jumbo Frame (64-9216 Byte)

Support Voltage Monitor

• Conversion between different transmission speeds and media types

• Standalone type or card type, Can be installed into 2U 14/16 Slots chassis

• Auto-negotiating Ethernet port (Half/Full Duplex)

• Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)

• Easy Installation, Easy Trouble shooting

• LED: Power, DUP,FP-LINK,RX, 1000, TX

• Dimension: 229x122x50mm (W x D x H) for packing, 94×70.6×26.5mm (W x D x H) for device





Item number TS-SFPMC1G
Standard Protocol IEEE802.3u,10/100/1000Base-T,1000Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab
Flow control IEEE802.3x port flow control and back pressure control
Transmission speed 10/100/1000M auto-negotiation
Transmission mode Full-duplex/semi duplex(auto-negotiation)
Conversion mode Storage transmission
MAC address VLAN 4K
Buffer space 128KB
Packet length Storage transmission:9728Bytes,straight-through,infinite.
Time-delay 9.6us
Bit error rate ˂1/1000000000
MTBF 100,000 hours
Power supply Outside: 5V DC 1A; Build-in: 110-265V AC 48V DC
Power dissipation <2.5W
Interface Electric port: RJ45, Fiber port:SC/FC or SFP
Twisted-pair cable Cat.5 UTP cable
Multimode fiber 50/125, 62.5/125um
Single mode fiber 9/125, 10/125um
Wavelength 850nm/1310nm/1550nm

Transmit distance:

– Dual fiber multimode

-Dual fiber single mode

-Single fiber single mode

-Cat.5 twisted-pair





Operating temperature 0-60°C

Storage temperature



5%-90% (no condensation)

Order Model 1SFP Slot and 1RJ45 Port SFP Fiber Media Converter

Order Model:

1SFP Slot and 1RJ45 Port SFP fiber Media Converter

Part Number Description
TS-SFPMC1G 1SFP+1RJ45,10/100/1000Mbps

. 1SFP and 1RJ45 Port SFP Media Converter

• Extend your Ethernet connection up to 0-120km away using fiber optics.

Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub networks to larger fiber optic networks/backbones.

Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).

• Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Ethernet Network.

• Bad industrial environment or high requirements for Lightning protection

• Intelligent transportation supervisory system(ITS) and safe city

• High-speed way supervisory/Tele-communication system, IP network camera

• Security surveillance system for large corporations, multifunction network system

• Long-distance multimedia schooling/ campus surveillance, long-distance broadcast television transmission system.
