Heater 150w-dy – Résistance Chauffant

Resistance pour coffret exterieur 150Watt avec ventilateur,  double protection au contact.

Chauffage dynamique selon la temperature ambiante.

Utilisé afin d’éviter la condensation d’humidité dans les coffrets quand la temperature baisse.

Doit être utilisée avec thermostat chaud pour regler la temperature de demarrage.

Product Description

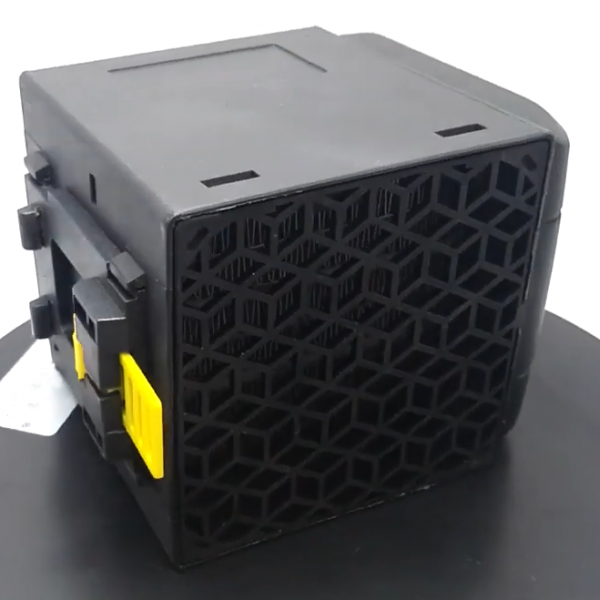

Double insulation 150W Fan heater, with dynamic heating. Prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the TS-Heater 150w-AUT makes it ideal for use in enclosures where space is at a premium. Available capacity is 150w.
  • Small, compact design
  • Quiet in operation
  • Dynamic heating up
  • Clip or screw fixing
Model Heater 150w-DY
Capacity 150w
Heating element PTC resistor-temperature limiting
Surface temperature 150W/250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature
Axial fan, ball bearing air flow, free flow
45m³/h (230VAC), 54m³/h (120VAC)
service life 40,000h at +40°C (+104°F)
Connection 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position vertical airflow (air outlet up)
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20 / II (double insulated)
Note other voltages on request
