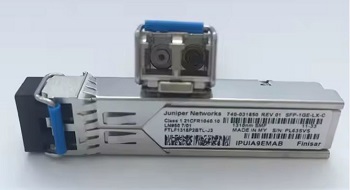

juniper sfp lx-2juniper sfpjuniper sfp lxJUNIPER SFP MODULE 1G-T

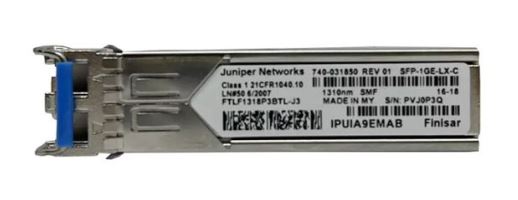

juniper sfp lx-2
juniper sfp

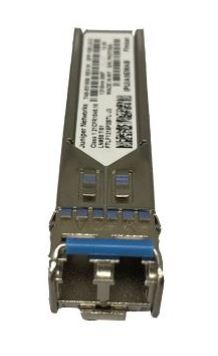

juniper sfp lx
JUNIPER SFP MODULE 1G-T

JUNIPER SFP MODULE

SFP-1GE-LX
SFP-1GE-SX
SFP-1GE-T

Catégorie :

Product Description

Speed
Gigabit Ethernet
Breakout Capable
No
Form Factor
SFP
Product Type
Optical Transceiver
Connector
Duplex LC PC/UPC
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Standard: 1000BASE-LX
Optic Type (Commercial Vs Service Provider Grade)
Commercial
Digital Diagnostic Monitoring
Tx Power
Rx Power
Tx Bias Current
Case Temperature
Power Supply Voltage
Signaling rate, each lane
1.25 Gbps
Transmitter wavelengths (range)
1270 nm to 1355 nm
Receive lane wavelengths (range)
1270 nm to 1355 nm
Transmitter output power, each lane (minimum)
-9.5 dBm
Transmitter output power, each lane (maximum)
-3 dBm
Receiver input power, each lane (minimum)
-19 dBm
Receiver input power, each lane (maximum)
-3 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)
-14.4 dBm
Cable type
SMF
MMF
MMF
Core size/cladding
–
62.5 µm (Refer the note below)
50 µm (Refer the note below)


Note: According to IEEE Std 802.3-2018, Clause 38.11.14. An offset-launch mode-conditioning patch cord is required for MMF operation of 1000BASE-LX.
o If the cabling is 62.5m MMF then the MMF used in the construction of the mode conditioner should be of type 62.5m MMF.
o If the cabling is 50m MMF, then the MMF used in the construction of the mode conditioner should be of type 50m MMF.
Effective modal bandwidth
–
500 MHz x km
500 MHz x km
Distance
10 km
550 m
550 m
Maximum Power consumption (W)
1 W
Operating Temperature (range)
–5° C to 70° C
Storage temperature
–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.15 kg
Height: 8.55 mm
Width: 13.55 mm
Depth: 57.5 mm
Back to Top
Speed
Gigabit Ethernet
Breakout Capable
No
Form Factor
SFP
Product Type
Optical Transceiver
Connector
Duplex LC PC/UPC
Monitoring Available
Yes
Standard: 1000BASE-SX
Signaling rate, each lane
1000 Mbps
Transmitter wavelengths (range)
770 nm through 860 nm
Transmitter output power, each lane (minimum)
–9.5 dBm
Transmitter output power, each lane (maximum)
0 dBm
Receiver input power, each lane (minimum)
–17 dBm
Receiver input power, each lane (maximum)
0 dBm
Cable type
MMF
Core size/cladding
62.5/125 µm
50/125 µm
Maximum Power consumption (W)
1 W
Operating Temperature (range)
–10° C to 85° C
Storage temperature
–40° C to 85° C
Speed
Gigabit Ethernet
Breakout Capable
No
Form Factor
SFP
Product Type
Copper
Connector
RJ-45
Monitoring Available
—
Digital Optical Monitoring
—
Standard: 1000BASE-T
Signaling rate, each lane
1000 Mbps
Cable type
Cat 5e
Distance
100 m
Maximum Power consumption (W)
1 W
Operating Temperature (range)
–40° C to 85° C
Storage temperature
–40° C to 85° C
DataSheet (PDF)

Related Products

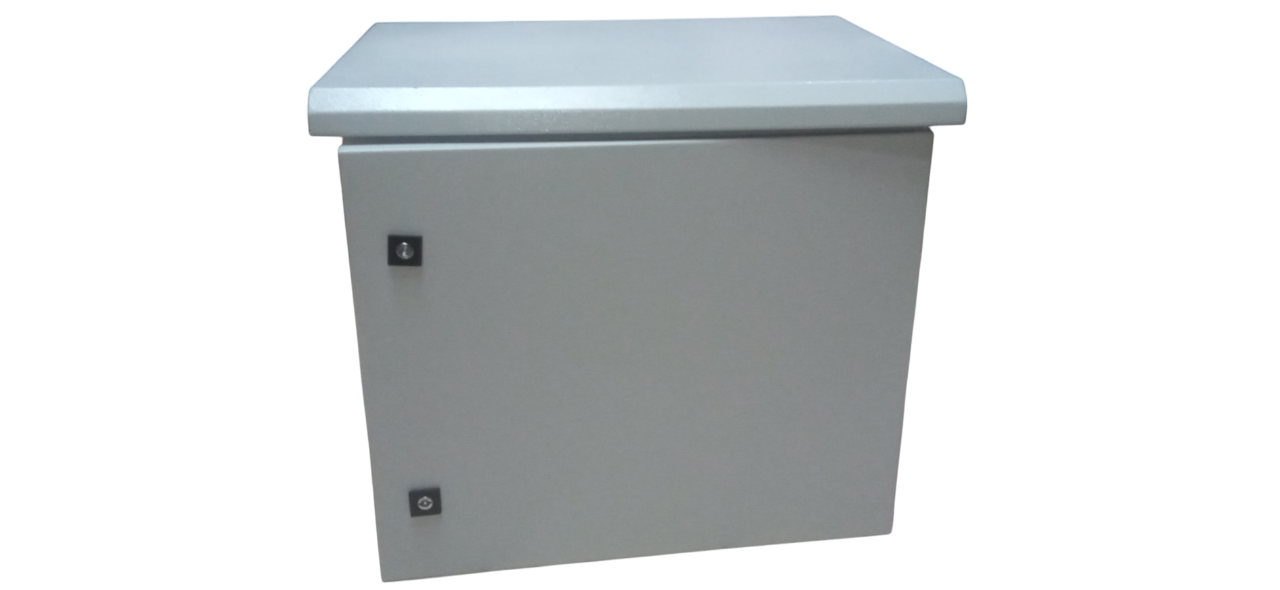

TS-EXT GAV (2)TS-EXT GAV (2)
