TS-101-SHDSL Modem Router

SHDSL Modem router complies with G.991.2 standard with 10/100 Base-T

Multi-range from 64kbps to 2.304Mbps payload rates over exiting single-pair copper wire.

Product Description

TS101 SHDSL (Single-Paired High Speed Digital Subscriber Loop) router complies with G.991.2 standard with 10/100 Base-T auto-negotiation. It provides business-class, multi-range from 64kbps to 2.304Mbps payload rates over exiting single-pair copper wire. SHDSL routers are designed not only to optimize the service bit rate form central office to customer premises also it integrates high-end Bridging/Routing capabilities with advanced functions of Multi-DMZ, virtual server mapping and VPN pass-through.
The SHDSL router allows customers to leverage the latest in broadband technologies to meet their growing data communication needs. Through the power of SHDSL products, you can access superior manageability and reliability.

Easy configuration and management with password control for various application environments
Efficient IP routing and transparent learning bridge to support broadband Internet services
VPN pass-through for safeguarded connections
DMZ host/Multi-DMZ/Multi-NAT enables multiple workstations on the LAN to access the Internet for the cost of IP address
Fully ATM protocol stack implementation over SHDSL
PPPoA and PPPoE support user authentication with PAP/CHAP/MS-CHAP
SNMP management with SNMPv1/SNMPv2 agent and MIB II
Getting enhancements and new features via Internet software upgrade support SHDSL splitter.

          Support IP/TCP/UDP/ARP/ICMP/IGMP protocols

          IP routing with static routing and RIPv1/RIPv2 (RFC1058/2453)

          IP multicast and IGMP proxy (RFC1112/2236)

          Network address translation (NAT/PAT) (RFC1631)

  • NAT ALGs for ICQ/Netmeeting/MSN/Yahoo Messenger
  • DNS relay and caching (RFC1034/1035)
  • DHCP server, client and relay (RFC2131/2132)

IEEE 802.1D Transparent Bridging


  • DMZ host/Multi-DMZ/Multi-NAT function
  • Virtual server mapping (RFC1631)
  • VPN pass-through for PPTP/L2TP/IPSec tunneling
  • Natural NAT firewall

WAN Interface:

SHDSL: ITU-T G.991.2 (Annex A, Annex B)
Encoding scheme: 16-TCPAM
Data Rate: N x 64Kbps (N=0~36, 0 for adaptive)
Impedance: 135 ohms

LAN Interface: 10 Base-T and 100 Base-T auto-negotiation

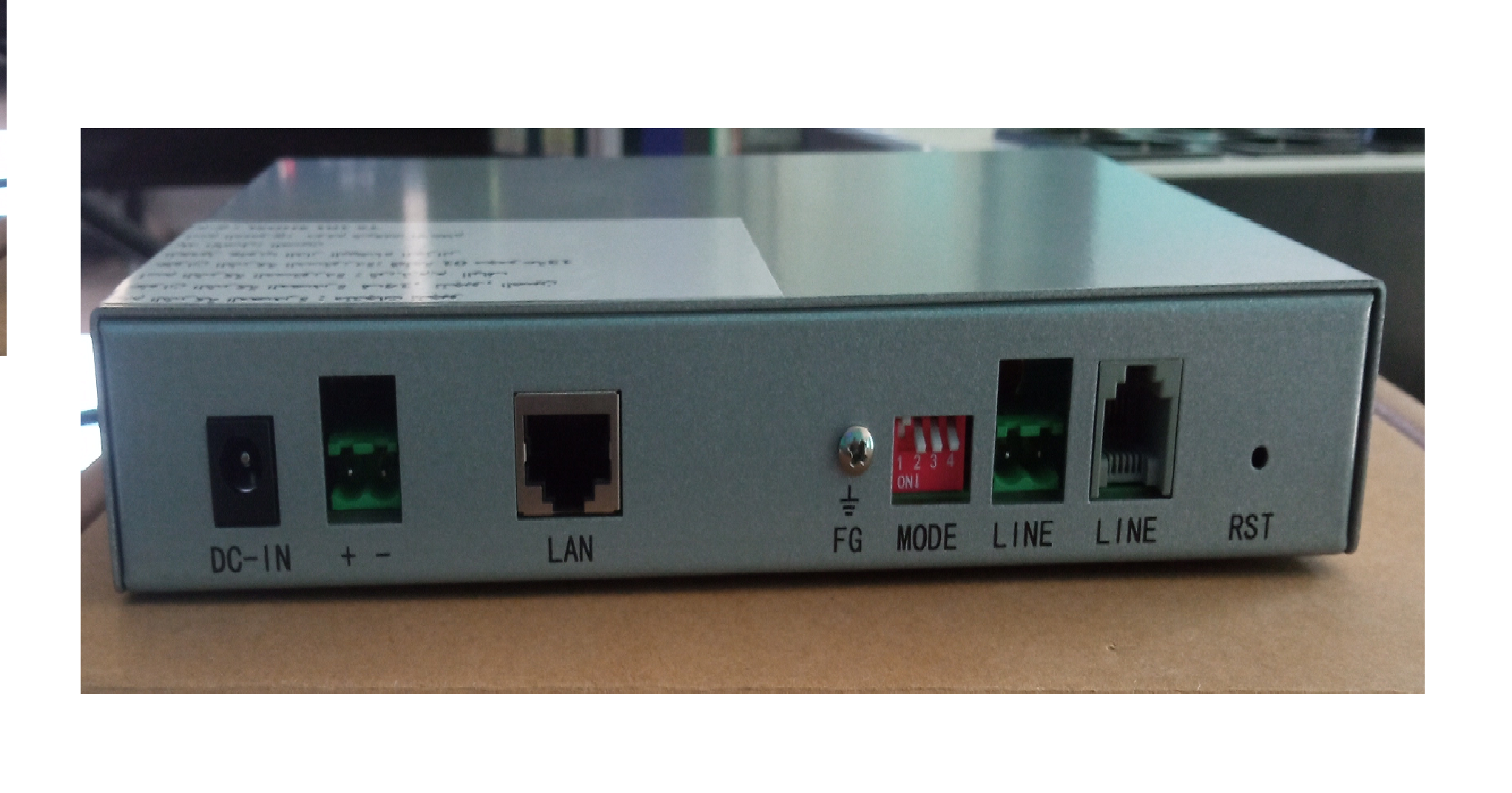

Hardware Interface:

WAN: RJ-11
LAN: RJ-45

Easy-to-use web-based GUI/DIP4 for quick setup, configuration and management
Menu-driven interface/Command-line interface (CLI) for local console and Telnet access
Password protected management and access control list for administration
SNMP management with SNMPv1/SNMPv2c (RFC1157/1901/1905) agent and MIB II (RFC1213/1493)
Software upgrade via web-browser/TFTP server.
