TSM-32PCM+1N

Mux 32 lignes+ 1xLAN RJ45  100Mbps ,

fonctionne sur un seul brin de fibre 40km

alimentation interne 220VAC

Catégorie : Étiquettes : , , ,

Product Description

Ø  fiber port:  Use single fibre core, the  transmission distance is up to 2-40km (120Km option) without interruption

Ø  Voice port supports FXO and FXS port,Support FXO/FXS, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;

Ø  1~32channel Voice access, Voice FXO / FXS interface, support for caller ID / reverse polarity billing / fax function;

Ø  Support various sites mutual number allocation function

Ø  Ethernet interface supports10/100M, half/full duplex auto- adaptable, support VLAN

Ø  Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)

Ø  Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards.

Ø  AC 220V, DC-48V, DC24V can be optional

Model

TSM-32PCM+1N

Functional Description

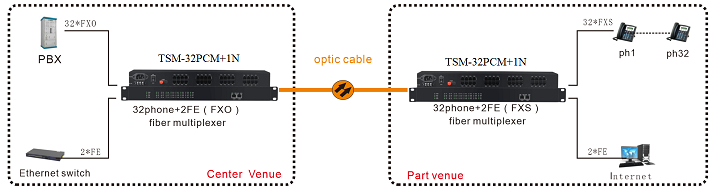

32 * telephone2*100 Mbps Ethernet1* Fiber interface

Power

Power supply: AC180V ~ 260VDC –48VDC +24V

Power consumption: ≤10W

Dimension

Product Size:   485X138X45mm(WXDXH) 19 1U

Weight

2.4KG
