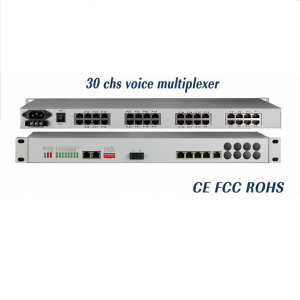

TSM-30E (PCM sur E1 cuivre)

Multiplexeur  PCM  30FXO/FXS  sur    E1(2Mbps), 120ohm RJ45, double alimentation AC+DC, rackmount 19”

Catégorie : Étiquettes : ,

Product Description

TSM-30E transmits 30 channels of voice over coaxial cable or twisted pairs. With all FXO/FXS modules soldered to the main board, this model is more cost-effective than modular ones and also has a more stable performance.

Functional Properties

   based on proprietary integrated circuits;

   alarm status can be monitored on the end;

   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;

   support FXO voice port FXS ports and ports EM2 / 4 audio interface FXO port and PBX docking port  and the user is connected to FXS telephone;

   30 road voice access support caller ID function and reverse polarity billing functions;

   Support Telephone Number mutual function of each site;

   E1 signal can be detected as a barrier to the end device is lost or shut E1;

   multiple power mode options: AC220V DC-48V / DC24V etc;

Technical Parameters

   E1 Interface

    Interface Standard:      comply with protocol G.703;

 Interface Rate:   n*64Kbps±50ppm;

Interface Code:  HDB3;

 E1 Impedance:     75Ω (unbalance) 120Ω (balance);     Jittertolerance:    In accord with protocol G.742 and G.823     Allowed Attenuation:   0~6dBm

    FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

    EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB


    Power supply: AC180V ~ 260VDC 48VDC +24V

    Power consumption: ≤10W


    Product Size:    Mini Type   216X140X31mm(WXDXH)       19inch       485X200X45mm(WXDXH)

    Simple packaging:  mini   274X193X84mm(WXDXH)          19inch    522X198X82mm(WXDXH)

    Piece Weight :    mini 1KG / 19inch  2.4KG

    Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:       5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:        5%~95 % (no condensation)
